Using German core components to build high-performance sealing and forming equipment, with high precision and stable operation, easily achieving high-standard IP68 sealing processing for sheet-metal enclosures and industrial chassis
Product Details

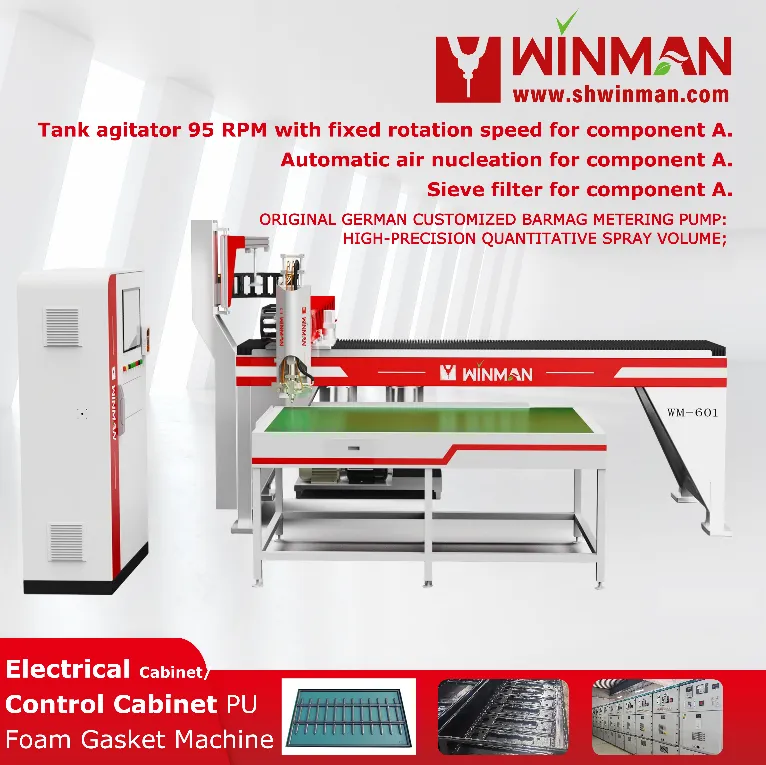

The WINMAN WM-601 FIPFG Automatic Foaming Adhesive Coating Machine, developed and manufactured by WINMAN INDUSTRIAL is specifically designed to provide IP68-level waterproof and dustproof sealing for large industrial enclosures, electrical control cabinets, and new energy equipment housings. This equipment utilizes German core components and dynamic mixing technology to achieve ultra-high precision coating of ±0.01%, with a maximum speed of 300mm/s, reducing energy consumption by 50% and significantly improving production line efficiency and consistency. It supports 24-hour continuous operation, features a 17-inch touchscreen interface, and a dual-feed, dual-recirculation structure for easy maintenance. Optional features include worktable size, voltage configuration, remote monitoring, and plasma surface treatment. It is widely used in power batteries, energy storage systems, photovoltaic equipment, and other fields. Certified by ISO9001 and CE, it is a globally trusted intelligent sealing solution.
Customized price reference
Payment method
COMM
Means of transaction
Core functions and advantages
Precision dispensing
Dispensing accuracy ±0.01%, ultra-precision sealing molding.
High-efficiency foaming
Foaming speed 0-300mm/s, increasing production efficiency by over 40%.
Continuous operation
Supports 24-hour uninterrupted continuous operation
German craftsmanship
Core components are manufactured in Germany, with a service life of 10-12 years.
Sealing and protection
The sealing rating can reach IP68, meeting the high standard of protection for large enclosures.
Energy saving and low consumption
The entire unit has a power consumption of 3.5KW, reducing energy consumption by 50%.
Precise proportions
The AB material ratio accuracy is ±0.1%, resulting in extremely high consistency of the finished product.
Convenient maintenance
Dual-infeed and dual-return head, convenient for maintenance and low failure rate
Process Flow
Large sheet metal boxes are placed on a custom-made tooling workbench.
The equipment’s intelligent system automatically identifies complex sealing paths and contours.
Precise delivery and high-speed mixing of AB two-component raw materials
STOP-DROP anti-drip nozzle automatic dispensing and foaming
High-pressure water washing + air drying, one-time molding without repair
Application industries
Sheet metal processing and manufacturing industry
Sealing and protection of sheet metal structural components
Industrial equipment manufacturing industry
Industrial Equipment Sealing and Environmental Protection
Electrical control cabinet manufacturing industry
Electrical control cabinet sealing and protection
Automation equipment supporting industry
Sealing and protection of automated equipment systems
Large chassis manufacturing industry
Large chassis structure sealing and protection
Technical Parameters
| Parameter Category | Parameter Name | Parameter Value |
|---|---|---|
| Core Equipment | Model | WM-601 |
| Working Accuracy | ±0.01% | |
| Foaming Speed | 0-300mm/s (Adjustable) | |
| Control System | Germany Sonderhoff Intelligent System + PLC | |
| Applicable Materials | Two-component polyurethane PU foaming material | |
| Feed Ratio | AB Ratio Range | 1:1-10:1 |
| Ratio Accuracy | ±0.1% | |
| Mixing Method | Dynamic High-Speed Mixing | |
| Tank Capacity | A 44L, B 44L | |
| Operation & Control | Operation Method | 17-inch Touchscreen + Teach Programming |
| Cleaning System | Dual System: High-Pressure Water + High-Pressure Air | |
| General Parameters | Voltage | 380V/50Hz |
| Total Machine Power | 3.5KW | |
| Protection Rating | Equipment IP54, Seal Strip IP68 |
Customer Cases
WINMAN Industrial Helps a Dubai Electrical Customer Upgrade Cabinet Sealing with WM601 FIPFG Solution
WINMAN Industrial provided a customized WM601 FIPFG in-situ foaming sealing solution for a smart electrical and new energy customer in Dubai facing sealing instability, material clogging, and maintenance issues in high- and low-voltage cabinet production. The project helped improve production efficiency, reduce defects, and support more consistent outdoor electrical equipment sealing with remote maintenance and on-site programming support.
Check the details
WINMAN INDUSTRIAL Helps a Jordan HVAC Manufacturer Improve Efficiency with the WM-601 FIPFG Machine
WINMAN INDUSTRIAL supported a Jordan-based HVAC manufacturer facing material buildup, pipe clogging, and unstable semi-automatic sealing operations. By introducing the WM-601 FIPFG automatic foam dispensing machine with IPC control, automatic air replenishment, and remote maintenance support, the customer improved production efficiency, reduced defects, and lowered operating costs while stabilizing the sealing process.
Check the details
WINMAN INDUSTRIAL WM-601 Case Study: Efficiency and Quality Upgrade for Low-Voltage Electrical Manufacturing in Kuwait
WINMAN INDUSTRIAL deployed the WM-601 FIPFG automatic foaming dispensing machine for a leading low-voltage electrical manufacturer in Kuwait, helping resolve material buildup and pipeline blockage issues found in semi-automatic equipment. With dynamic mixing, dual-core system control, and remote maintenance support, the project improved production efficiency, raised product consistency, and reduced operating costs in a high-standard electrical sealing application.
Check the details
WINMAN WM-601 Helps an Algerian Low-Voltage Electrical Manufacturer Upgrade Its FIPFG Sealing Line
Shanghai Winman Industrial Co., Ltd. customized and delivered the WM-601 FIPFG polyurethane foam sealing gasket machine to a low-voltage electrical equipment manufacturer in Algeria. Addressing the issues of its semi-automatic sealing method and insufficient stability of the original equipment, the company optimized key aspects such as dual-component control, dynamic mixing, and automatic gas replenishment, helping the customer improve the automation level, operational stability, and overall manufacturing efficiency of the distribution cabinet sealing production line.
